Bike Design examples

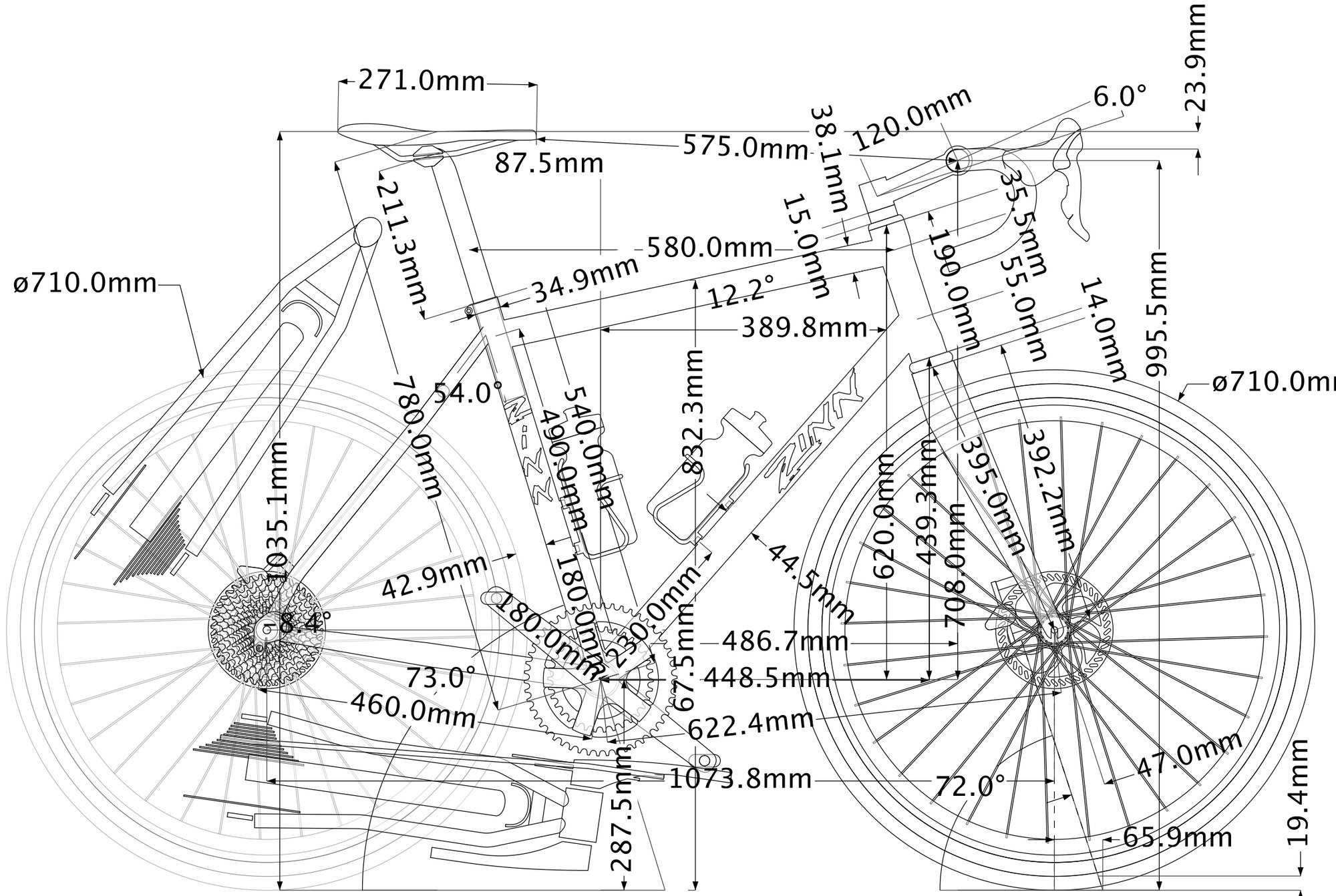

Screenshot 2025-10-21 at 12.09.04 PM

Gravel Bike

This gravel bike is designed for a rider around 6 feet tall with a sport position.

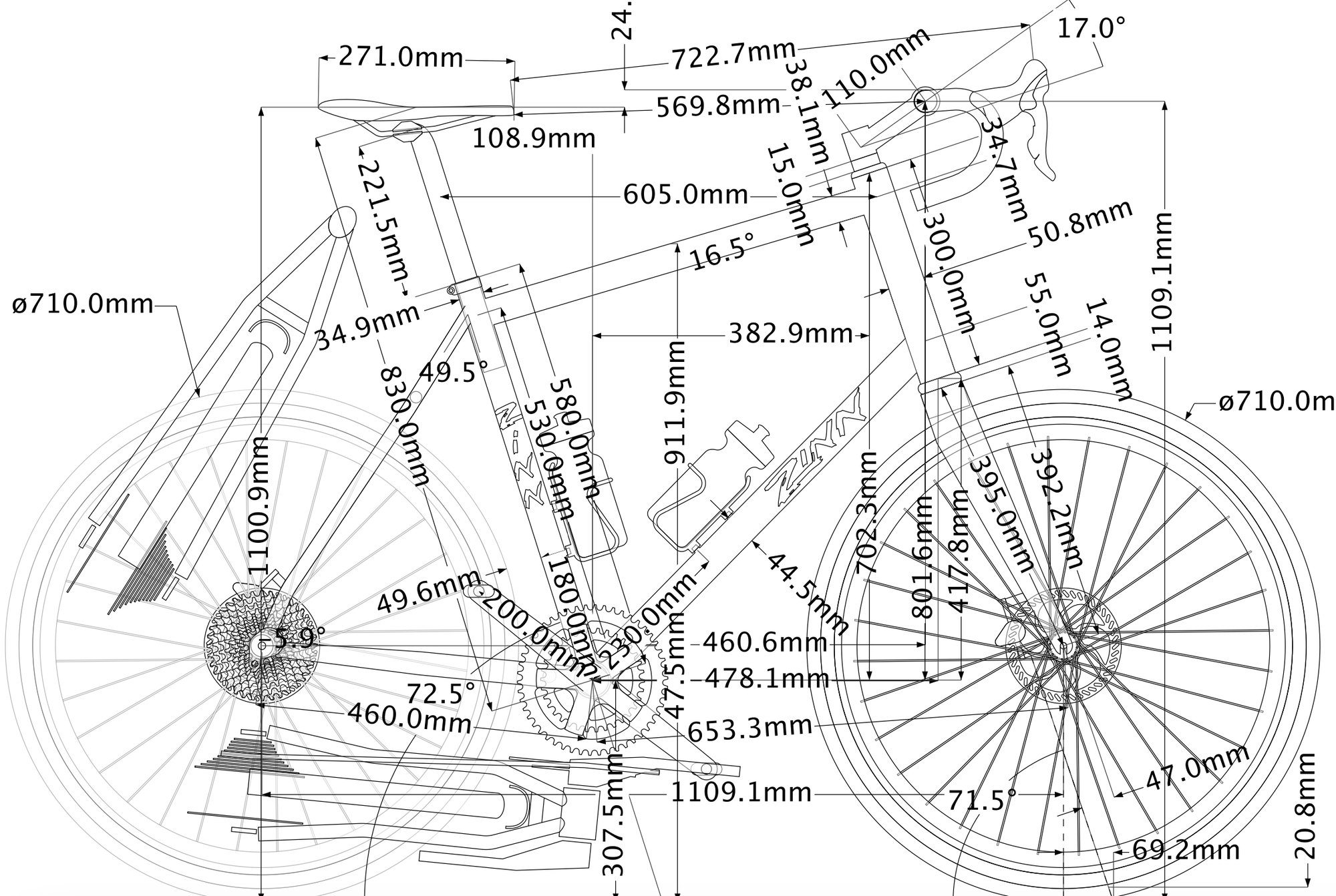

Screenshot 2025-10-21 at 12.10.18 PM

Gravel Bike

This all road bike is designed for a rider around 6'5" with a more upright position.

Screenshot 2025-10-21 at 12.09.32 PM

Gravel/Road

This gravel road bike is designed for a rider around 5'10" with long legs and shorter torso

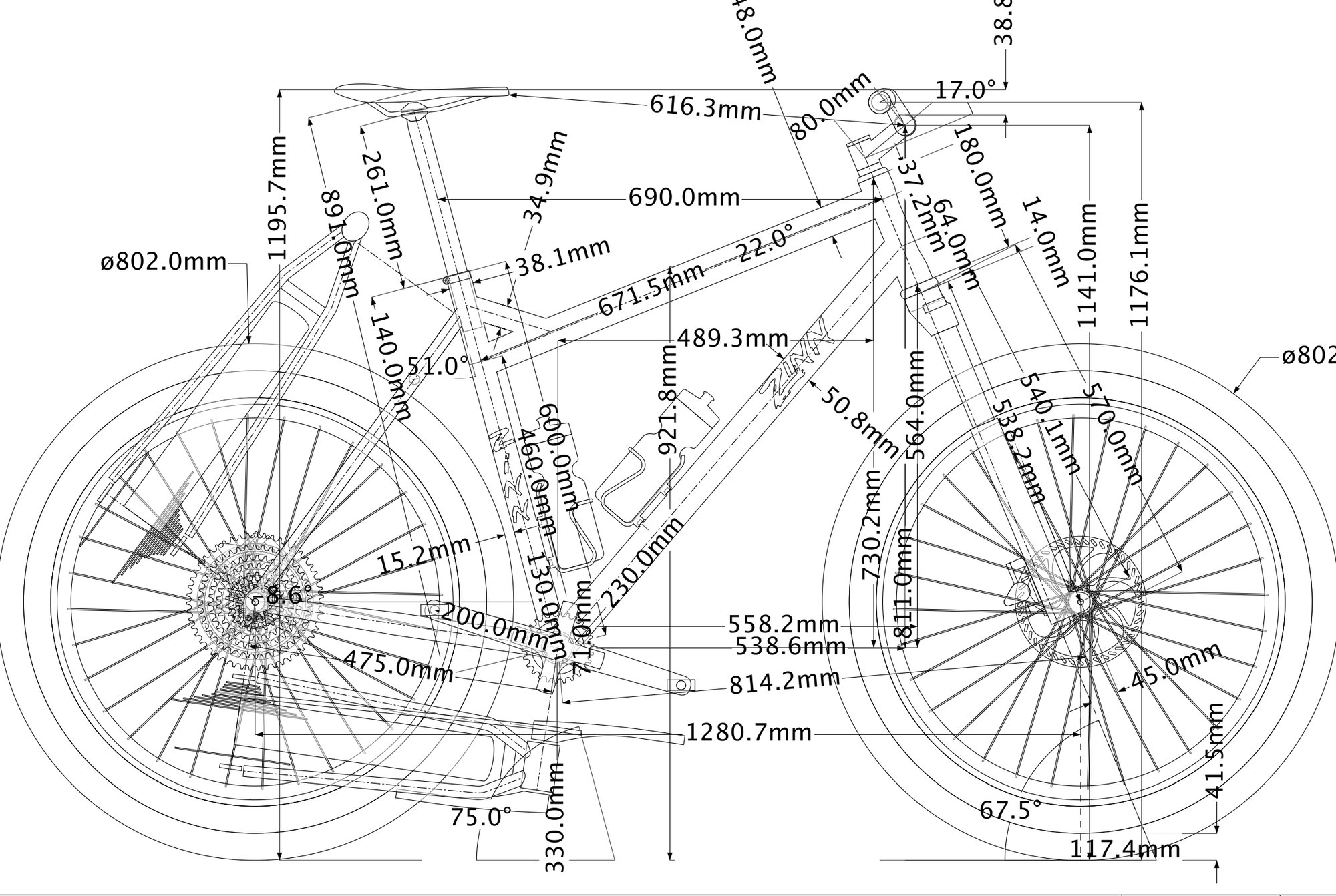

Screenshot 2025-10-21 at 12.19.46 PM

Mountain Bike

This mountain bike is designed for a 6'10" rider with 32 inch wheels and proportional cranks.

Screenshot 2025-10-21 at 12.22.29 PM

Step-through

This hybrid bike is built as a step through design for a rider around 6'4" who has mobility issues that prevent him from swinging his leg over a bike.

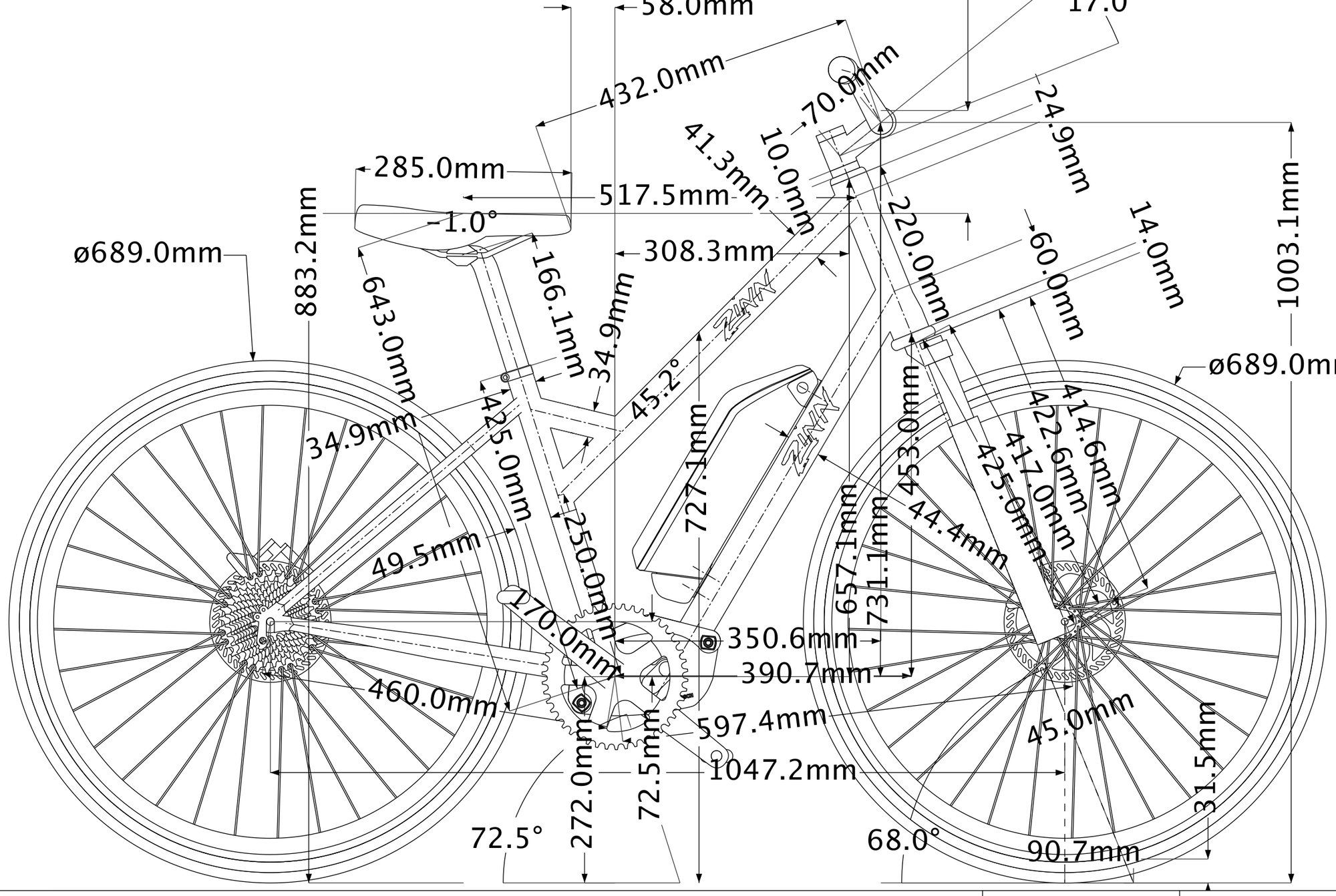

Screenshot 2025-10-21 at 12.20.56 PM

Hybrid Ebike

This hybrid e-bike is designed for a 5'8" rider needing upright position and plenty of standover clearance.
